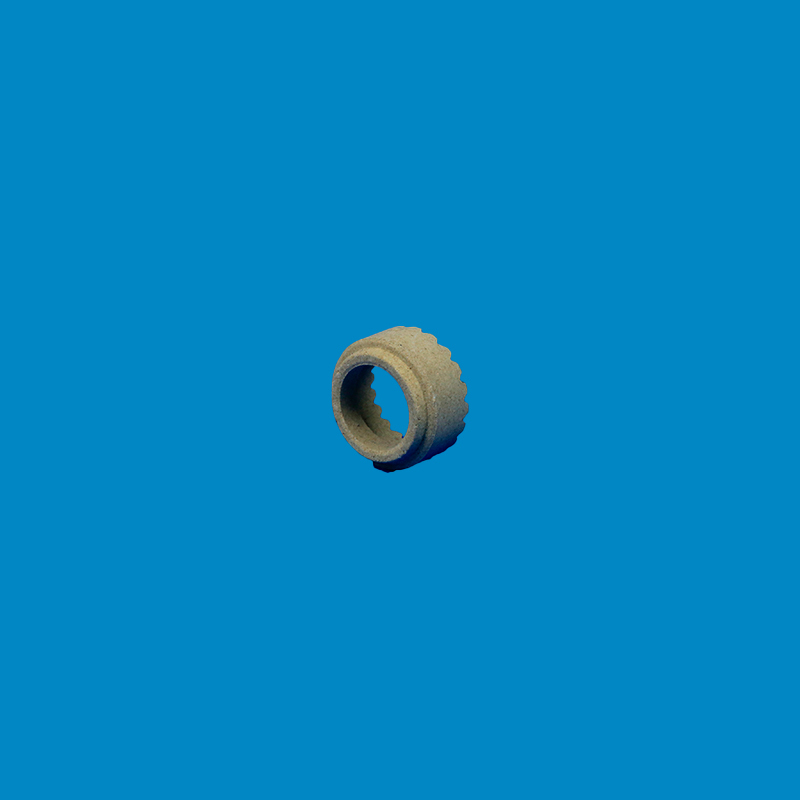

Custom Cordierite Ceramic Stud Ferrule for Chemical Equipment

Name: Custom Cordierite Ceramic Stud Ferrule for Chemical Equipment
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Cordierite Ceramics
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: Cordierite Ceramics

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: Negotiable

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Customized Cordierite Ceramics Stud Ferrule, Acid Alkali Corrosion Resistance Stud Ferrule, Chemical Environmental Protection Stud Ferrule


Material:	Cordierite Ceramics	Color:	Customizable
Hardness:	800 HV	Bending Strength:	900 Kgf/cm2
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	Cordierite Ceramics
Color:	Customizable
Hardness:	800 HV
Bending Strength:	900 Kgf/cm2
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

Custom Cordierite Ceramic Stud Ferrule for Chemical Equipment

Customized Cordierite Ceramics Stud Ferrule

Acid & Alkali Corrosion Resistant for Chemical Environmental Protection

Product Specifications

Attribute	Value
Material	Cordierite Ceramics
Color	Customizable
Hardness	800 HV
Bending Strength	900 Kgf/cm²
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 PCS
Package	Carton

Product Description

Cordierite porous ceramics are engineered for superior performance in demanding chemical environments. These ceramics feature exceptional high-temperature resistance and corrosion resistance, making them ideal for diesel engine exhaust particulate filters (DPF) and other industrial applications.

Key Features

Unique honeycomb structure for efficient particle filtration
Excellent thermal shock resistance for engine applications
Environmentally friendly material solution
Customizable specifications for diverse industrial needs

Technical Specifications

Item	Test Condition	Unit & Symbol	Cordierite Ceramics
Main Chemical Ingredient			MgO, Al₂O₃, SiO₂
Bulk Density		gm/cc	2.6
Maximum Use Temperature			1400℃
Hardness		HV	800
Bending Strength	20℃	Kgf/cm²	900
Compressive Strength	20℃	Kgf/cm²	3500
Thermal Expansion		1X 10⁻⁶/℃	≤2.0
Thermal Conductivity	25℃-30℃	W/m.k	1.3
Thermal Shock Resistance	Tc	℃	250
Dielectric Constant	1MHz.25℃		6
Dielectric Strength		ac-kV/mm (ac V/mil)	10
Volume Resistivity	20℃	ohm-cm	> 10¹²
