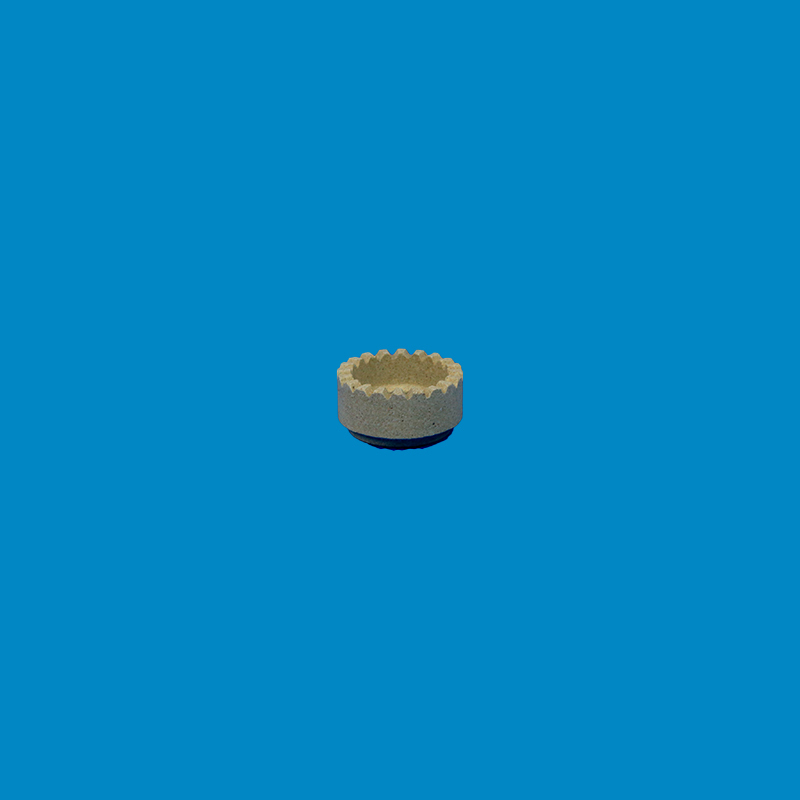

Name: Cordierite Ceramic Stud Ferrules for High-Temperature Electronics
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Cordierite Ceramics
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: Cordierite Ceramics

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: Negotiable

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Electronics Industry Stud Ferrule, High Temperature Insulation Stud Ferrule, Low Dielectric Loss Stud Ferrule


Material:	Cordierite Ceramics	Color:	Customizable
Hardness:	800 HV	Bending Strength:	900 Kgf/cm2
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	Cordierite Ceramics
Color:	Customizable
Hardness:	800 HV
Bending Strength:	900 Kgf/cm2
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

Cordierite Ceramic Stud Ferrules for High-Temperature Electronics

Stud Ferrule Low Dielectric Loss High Temperature Insulation for Electronics Industry

Key Features

Precision cordierite ceramics with low dielectric constant (ε≈5-6)
Exceptional high-temperature resistance up to 1400℃
Low dielectric loss for high-frequency electronic applications
Customizable color and specifications (OEM/ODM acceptable)
Ideal for 5G communications, radar systems, and electronic components

Product Specifications

Attribute	Value
Material	Cordierite Ceramics
Color	Customizable
Hardness	800 HV
Bending Strength	900 Kgf/cm²
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 PCS
Package	Carton

Technical Properties

Item	Test Condition	Unit & Symbol	Cordierite Ceramics
Main Chemical Ingredient			MgO, Al₂O₃, SiO₂
Bulk Density		gm/cc	2.6
Maximum Use Temperature			1400℃
Hardness		HV	800
Bending Strength	20℃	Kgf/cm²	900
Compressive Strength	20℃	Kgf/cm²	3500
Thermal Expansion		1×10⁻⁶/℃	≤2.0
Thermal Conductivity	25℃-30℃	W/m·k	1.3
Thermal Shock Resistance	Tc	℃	250
Dielectric Constant	1MHz, 25℃		6
Dielectric Strength		ac-kV/mm (ac V/mil)	10
Volume Resistivity	20℃	ohm-cm	> 10¹²

Applications

Cordierite ceramics serve as high-quality microwave dielectric materials in various electronic applications. Their low dielectric loss makes them particularly suitable for:
