High Temperature Cordierite Ceramic Stud Ferrules for Flue Gas

Name: High Temperature Cordierite Ceramic Stud Ferrules for Flue Gas
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Cordierite Ceramics
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: Cordierite Ceramics

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: Negotiable

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                High Temperature Resistant Stud Ferrule, Strong Thermal Stability Stud Ferrule, Flue Gas Transportation Stud Ferrule


Material:	Cordierite Ceramics	Color:	Customizable
Hardness:	800 HV	Bending Strength:	900 Kgf/cm2
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	Cordierite Ceramics
Color:	Customizable
Hardness:	800 HV
Bending Strength:	900 Kgf/cm2
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

High Temperature Cordierite Ceramic Stud Ferrules for Flue Gas

Stud Ferrule High Temperature Resistant Strong Thermal Stability Flue Gas Transportation

Product Specifications

Attribute	Value
Material	Cordierite Ceramics
Color	Customizable
Hardness	800 HV
Bending Strength	900 Kgf/cm2
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 PCS
Package	Carton

Technical Properties

Item	Test Condition	Unit & Symbol	Cordierite Ceramics
Main Chemical Ingredient			MgO, Al2O3, SiO2
Bulk Density		gm/cc	2.6
Maximum Use Temperature			1400℃
Hardness		HV	800
Bending Strength	20℃	Kgf/cm2	900
Compressive Strength	20℃	Kgf/cm2	3500
Thermal Expansion		1X 10-6/℃	≤2.0
Thermal Conductivity	25℃-30℃	W/m.k	1.3
Thermal Shock Resistance	Tc	℃	250

Product Description

Our high-temperature resistant cordierite ceramics offer exceptional thermal stability for flue gas transportation applications. Thanks to its unique crystal structure and low expansion characteristics, this material demonstrates excellent thermal shock resistance, capable of withstanding rapid cooling and heating cycles above 1000℃.

These properties make cordierite ceramic an ideal solution for demanding high-temperature equipment including kiln furniture and thermocouple protection tubes, where thermal stability and durability are critical.

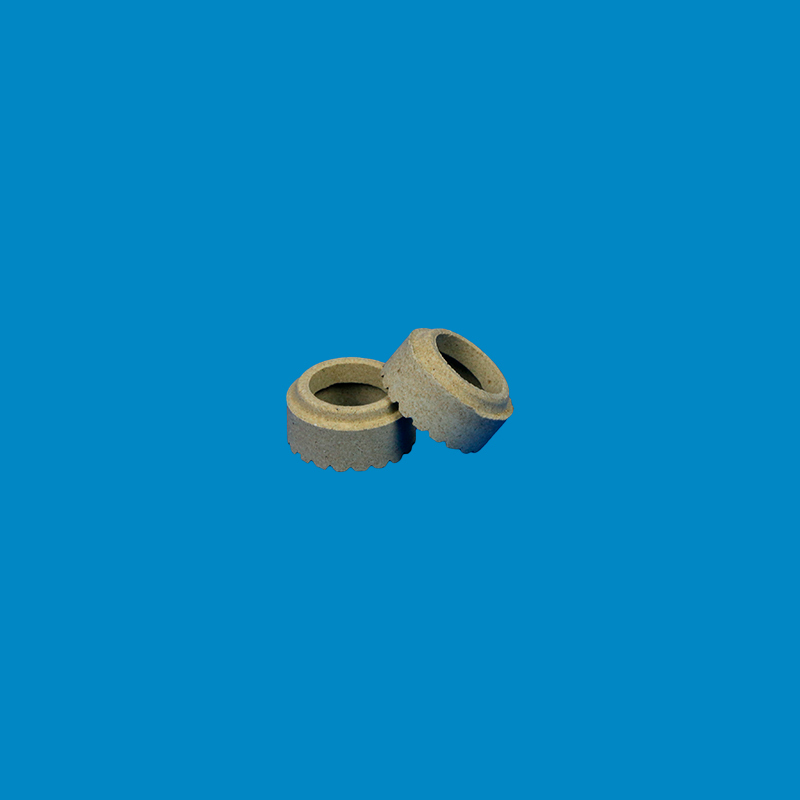

Product Images
