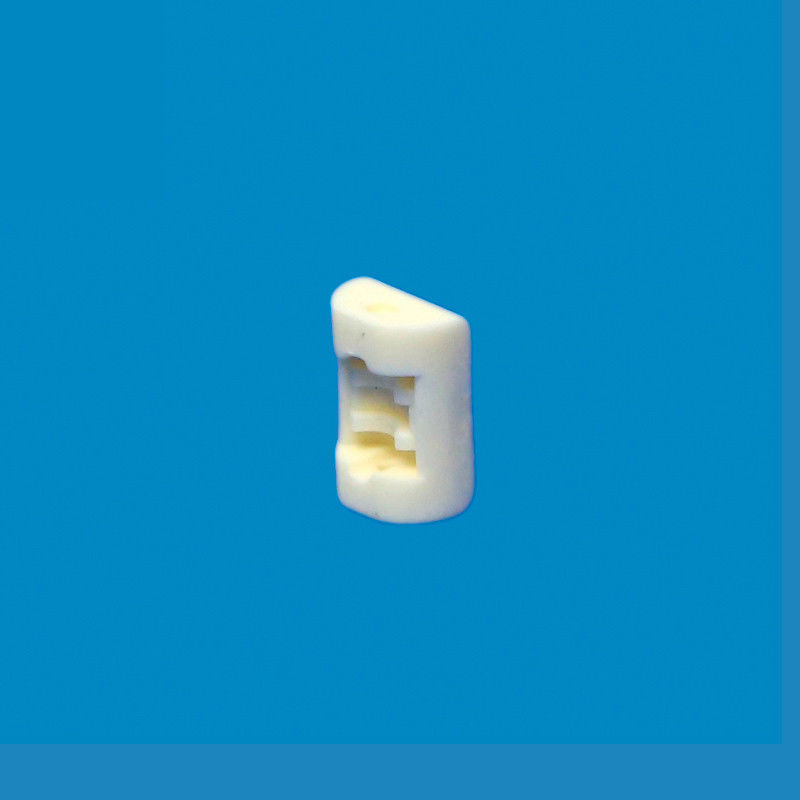

Versatile 99% Alumina Ceramics For Different Fields Flexural Strength 350Mpa

Name: Versatile 99% Alumina Ceramics For Different Fields Flexural Strength 350Mpa
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: 99% Alumina Ceramics

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                350mpa 99 alumina, 350mpa 99% alumina ceramics, white 99 alumina


Material:	99% Alumina Ceramics	Color:	White
Density:	3.85g/cm³	Thermal Shock Resistance:	270 △T℃
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	99% Alumina Ceramics
Color:	White
Density:	3.85g/cm³
Thermal Shock Resistance:	270 △T℃
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

Versatile 99% Alumina Ceramics For Different Fields Flexural Strength 350Mpa

Product Attributes

Attribute	Value
Material	99% Alumina Ceramics
Color	White
Density	3.85g/cm³
Thermal Shock Resistance	270 △T℃
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramic is a high-performance ceramic material manufactured from alumina as the primary raw material through processes including crushing, forming, and sintering. This engineering ceramic offers exceptional properties including high hardness, superior wear resistance, excellent heat resistance, and outstanding electrical insulation.

With high insulation performance and excellent thermal conductivity, 99% alumina ceramics are ideal for manufacturing high-frequency ceramic media, electronic ceramics, thermistors, and other critical electronic components, making them widely used in premium electronic products.

Technical Specifications

Material	Unit	A95% Alumina	A97% Alumina	A99% Alumina	A99.7% Alumina
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

Product Images
