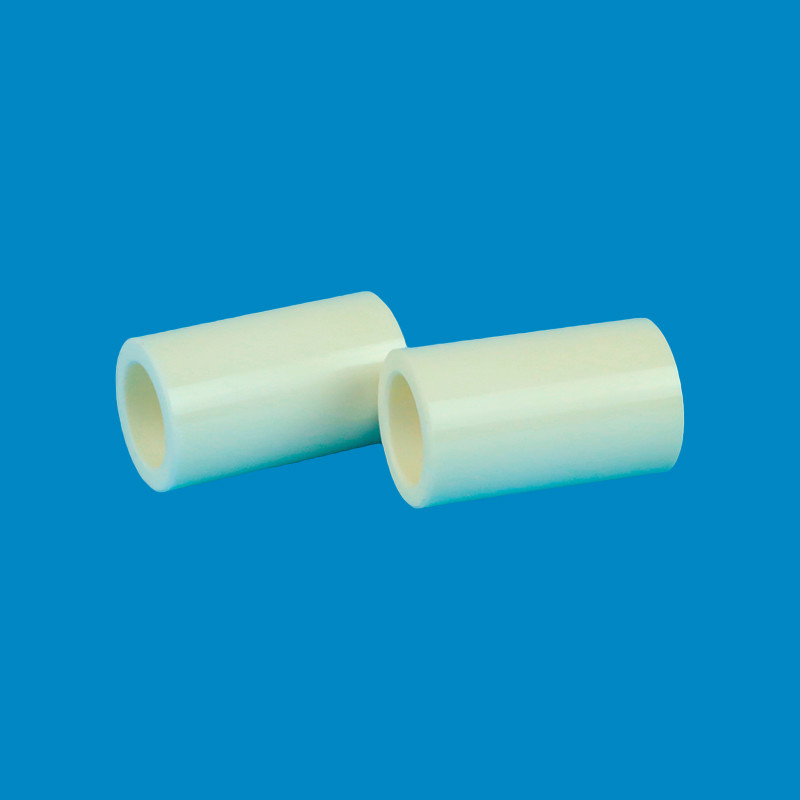

Insulating Ceramic Tube with Excellent Heat Resistance and Chemical Resistance

Name: Insulating Ceramic Tube with Excellent Heat Resistance and Chemical Resistance
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Ceramic Tube
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: Ceramic Tube

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: L/C,T/T

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                heat resistant ceramic tube, chemical resistant insulating tube, insulating ceramic tube with warranty


Material:	Ceramic Tube	Temperature Capability:	High Heat Resistant
Dielectric Constant:	10εr	Orgin:	WUXI JIANGSU CHINA
MOQ:	100	Package:	Carton

Material:	Ceramic Tube
Temperature Capability:	High Heat Resistant
Dielectric Constant:	10εr
Orgin:	WUXI JIANGSU CHINA
MOQ:	100
Package:	Carton

Insulating Ceramic Tube with Excellent Heat Resistance and Chemical Resistance

Product Attributes

Attribute	Value
Material	Ceramic Tube
Temperature Capability	High Heat Resistant
Dielectric constant	10εr
Origin	WUXI JIANGSU CHINA
MOQ	100
Package	Carton

High-Performance Alumina Ceramic Tubes

Alumina ceramic tubes serve as critical components across industrial and scientific applications, particularly valued for transporting corrosive chemicals like acids and alkalis in chemical processing.

Material Specifications

Property	A95%	A97%	A99%	A99.7%
Density (g/cm³)	3.6	3.72	3.85	3.85
Flexural Strength (MPa)	290	300	350	350
Compressive Strength (MPa)	3300	3400	3600	3600
Vickers Hardness (HV0.5)	1800	1850	1900	1900
Max. Operating Temp. (°C)	1600	1600	1650	1650

Key Advantages

Exceptional chemical resistance for corrosive media handling
Superior mechanical strength and thermal stability
Excellent electrical insulation properties
Long service life with minimal maintenance

Industrial Applications

Chemical processing equipment
High-temperature industrial systems
Electrical insulation components
Corrosive fluid transport systems
