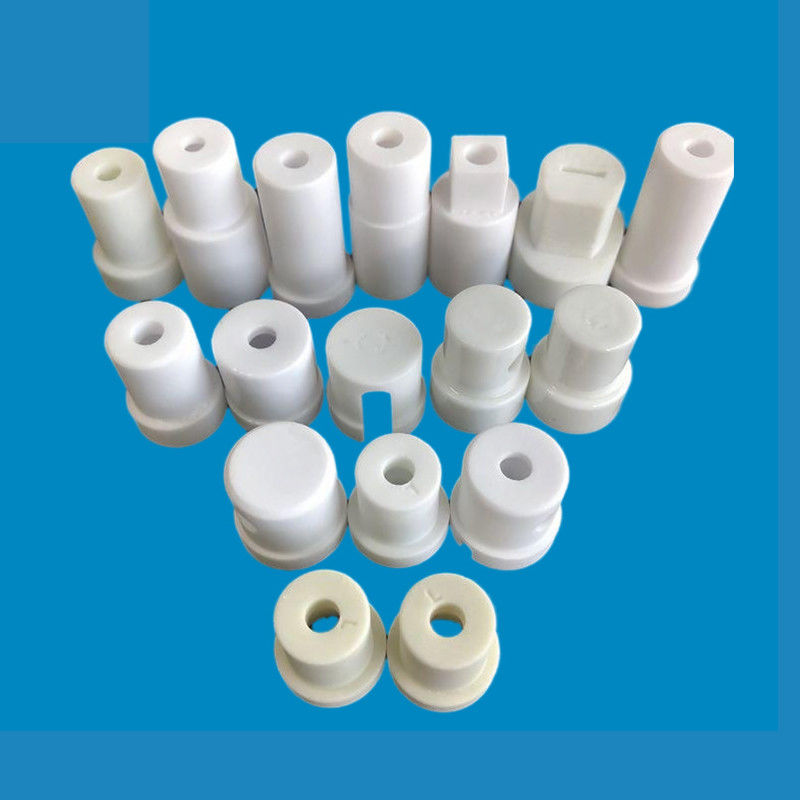

High Performance 95% Alumina Ceramics Components For Electronic Manufacturing

Name: High Performance 95% Alumina Ceramics Components For Electronic Manufacturing
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: 95% Alumina Ceramics

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: L/C, T/T

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                3.6 g/cm³ al2o3 ceramic, 95% al203 ceramic, 95% alumina based ceramics


Material:	95% Alumina Ceramics	Color:	White
Weibull Modulus:	10M	Density:	3.6 G/cm³
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	95% Alumina Ceramics
Color:	White
Weibull Modulus:	10M
Density:	3.6 G/cm³
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

High Performance 95% Alumina Ceramics Components For Electronic Manufacturing

Product Specifications

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Weibull Modulus	10M
Density	3.6 g/cm³
OEM，ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Ordinary alumina ceramic series are divided into 95% ceramic, 97% ceramic, 99% ceramic, 99.7% ceramic and other varieties according to different Al2O3 contents. The more alumina content, the more the inherent characteristics of alumina can be played, the better the performance, but the manufacturing also becomes difficult with the increase of alumina content.

Technical Specifications Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardulus	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10
