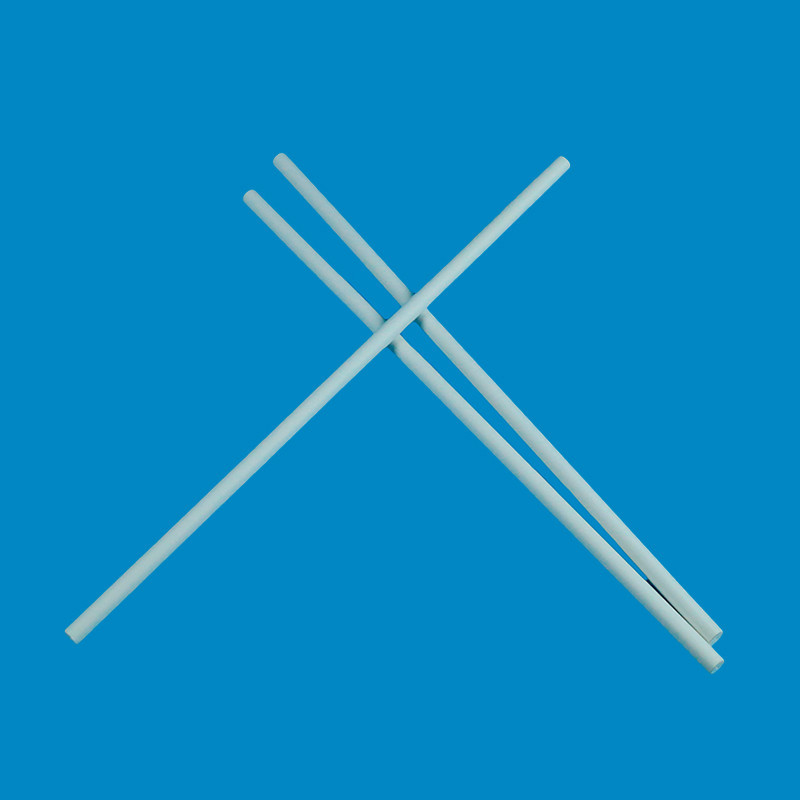

Name: Chemically Inert And Wear Resistant Alumina Ceramic Tube For Harsh Environments
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Ceramic Tube
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: Ceramic Tube

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: L/C,T/T

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                chemically inert alumina ceramic tube, wear resistant ceramic tube, alumina ceramic tube for harsh environments


Material:	Ceramic Tube	Color:	Yellow Or White
Temperature Capability:	High Heat Resistant	Dielectric Constant:	10εr
Package:	Carton	Brand:	HENGYUAN

Material:	Ceramic Tube
Color:	Yellow Or White
Temperature Capability:	High Heat Resistant
Dielectric Constant:	10εr
Package:	Carton
Brand:	HENGYUAN

Chemically Inert And Wear Resistant Alumina Ceramic Tube For Harsh Environments

Product Specifications

Attribute	Value
Material	Ceramic Tube
Color	Yellow Or White
Temperature Capability	High Heat Resistant
Dielectric constant	10εr
OEM，ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100
Package	Carton

Alumina Ceramic Tubes: High-Performance Industrial Solutions

Alumina ceramic tubes serve as essential components in industrial and scientific applications, offering exceptional wear resistance for material transport in mining operations (e.g., ores, fly ash).

Material Properties

Property	A95%	A97%	A99%	A99.7%
Density (g/cm³)	3.6	3.72	3.85	3.85
Flexural Strength (MPa)	290	300	350	350
Compressive Strength (MPa)	3300	3400	3600	3600
Modulus of Elasticity (GPa)	340	350	380	380
Vickers Hardness (HV0.5)	1800	1850	1900	1900
Max. Use Temp. (°C)	1600	1600	1650	1650

Key Advantages

Extreme Durability: High mechanical strength (up to 3600 MPa compressive)
Thermal Stability: Withstands temperatures to 1650°C (A99.7%)
Electrical Insulation: Volume resistivity ≥10¹⁴ Ω at 20°C
Wear Resistance: Ideal for abrasive material handling

Applications

Mining slurry transport systems
High-temperature furnace components
Electrical insulation assemblies
