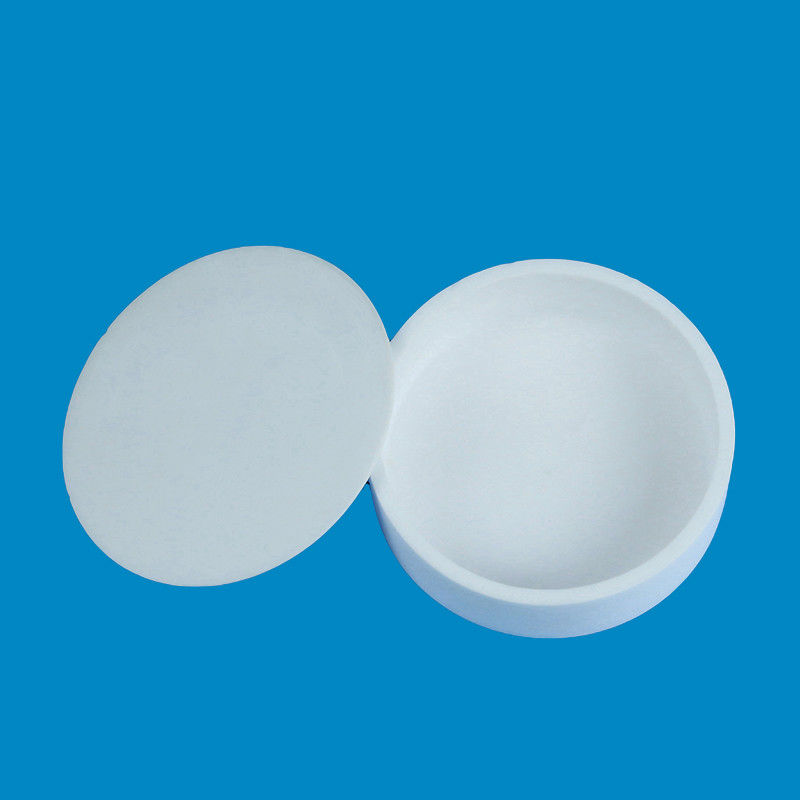

Alumina Ceramic Crucible For Analyzing And Firing Processes With High Compressive Strength

Name: Alumina Ceramic Crucible For Analyzing And Firing Processes With High Compressive Strength
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Alumina Ceramic Crucible
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: Alumina Ceramic Crucible

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: L/C, T/T

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Corundum Mullite Kiln Sintering, Alumina Kiln Sintering Ceramic, Corundum Mullite Ceramic Bowl


Material:	Alumina Ceramic Crucible	Color:	Yellow Or White
Shape:	Customization	Usage:	Industry Usage
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	Alumina Ceramic Crucible
Color:	Yellow Or White
Shape:	Customization
Usage:	Industry Usage
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

Alumina Ceramic Crucible For Analyzing And Firing Processes With High Compressive Strength

Product Attributes

Attribute	Value
Material	Alumina Ceramic Crucible
Color	Yellow Or White
Shape	Customization
Usage	Industry Usage
OEM，ODM	Acceptable
Orgin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramic crucible is one of the kiln tools for firing ceramics, and its main material is refractory clay. Refractory clay is a material with high refractoriness that can maintain stability at high temperatures without deformation or damage. The selection of this material is to protect the ceramic ware and body during the firing process, preventing them from being damaged and contaminated by gases and harmful substances.

Technical Specifications

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardulus	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10
