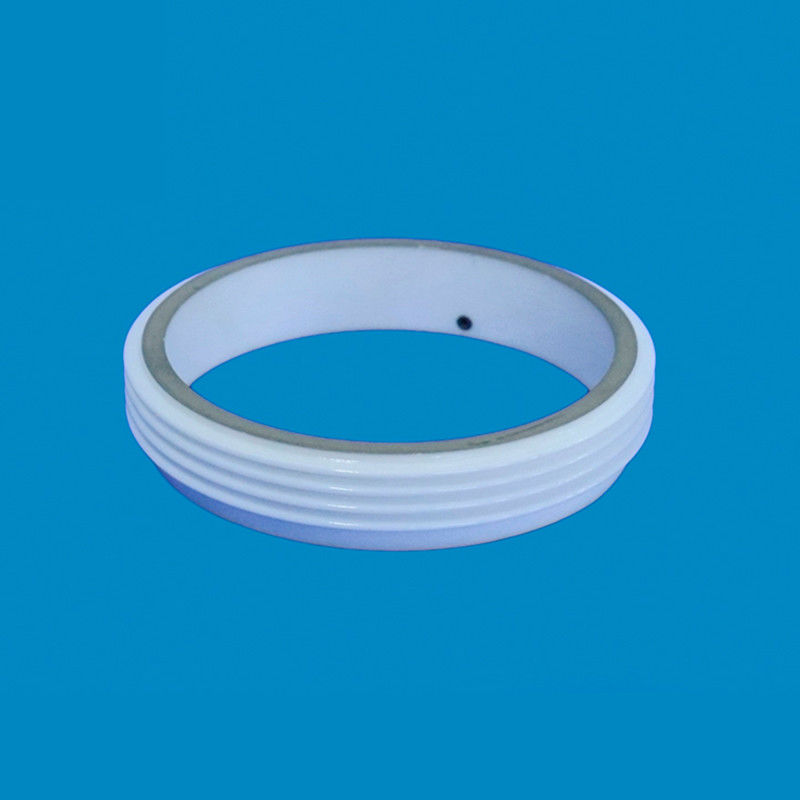

3.6g/Cm³ 95% Alumina Ceramics Ring High Insulation Heat Resistant

Name: 3.6g/Cm³ 95% Alumina Ceramics Ring High Insulation Heat Resistant
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Availability: InStock

Product Details

Place of Origin: WUXI JIANGSU CHINA

Brand Name: HENGYUAN

Certification: CE,UL

Model Number: 95% Alumina Ceramics

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 DAYS

Payment Terms: L/C, T/T

Supply Ability: 5000 PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                3.6g/cm³ alumina ceramic ring, 95% alumina ceramic ring, Heat Resistant   alumina ring


Material:	95% Alumina Ceramics	Color:	White
Density:	3.6g/cm³	Working Temperature:	1600℃
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton

Material:	95% Alumina Ceramics
Color:	White
Density:	3.6g/cm³
Working Temperature:	1600℃
OEM，ODM:	Acceptable
Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS
Package:	Carton

3.6g/Cm³ 95% Alumina Ceramics Ring High Insulation Heat Resistant

Product Attributes

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Density	3.6g/cm³
Working Temperature	1600℃
OEM，ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

HENGYUAN manufactures and provides alumina ceramic components for a wide range of applications including Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, and Chemical Industry. According to actual application and customer requirements, the purities vary from 95%-99.7% and the forming methods will be different. Our plant utilizes various forming methods including dry pressing, isostatic pressing, injection moulding, and extrusion moulding. With experienced engineers and talented workers, we are confident in offering high quality, high precision, complex components for customers worldwide.

Material Specifications

Naterial	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardulus	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10
